Testing our front-end with Cypress

"No one shall expel us from the Paradise that Cypress has created."

-- Me, right now

We love Cypress, and after this tutorial we're sure you will too.

If you've never encountered Cypress before, it allows us to write fast, functional, front-end tests that run in an actual browser using standard js tooling. It has a very gentle learning curve if you're already comfortable writing front-end code, and a moderate one if you are not.

If you've never used Cypress before, then we recommend reading through their docs as well as this. While we'll cover some basics in this tutorial, we'll really just be skimming the surface to show how Cypress fits in to koil.

Creating and running a Cypress test

Step 0: Installing Node.js

If you already have Node 12, then feel free to skip this.

Cypress needs Node.js to run. Normally, when you build a koil project, gradle will pull down the required node version and use it to build your front-end assets. To install Node.js on your machine for use globally, we recommend using the Node Version Manager to install the latest LTS version of node (nvm install --lts).

Once that's done, navigate to the src/webapp directory in your koil project and run npm ci:

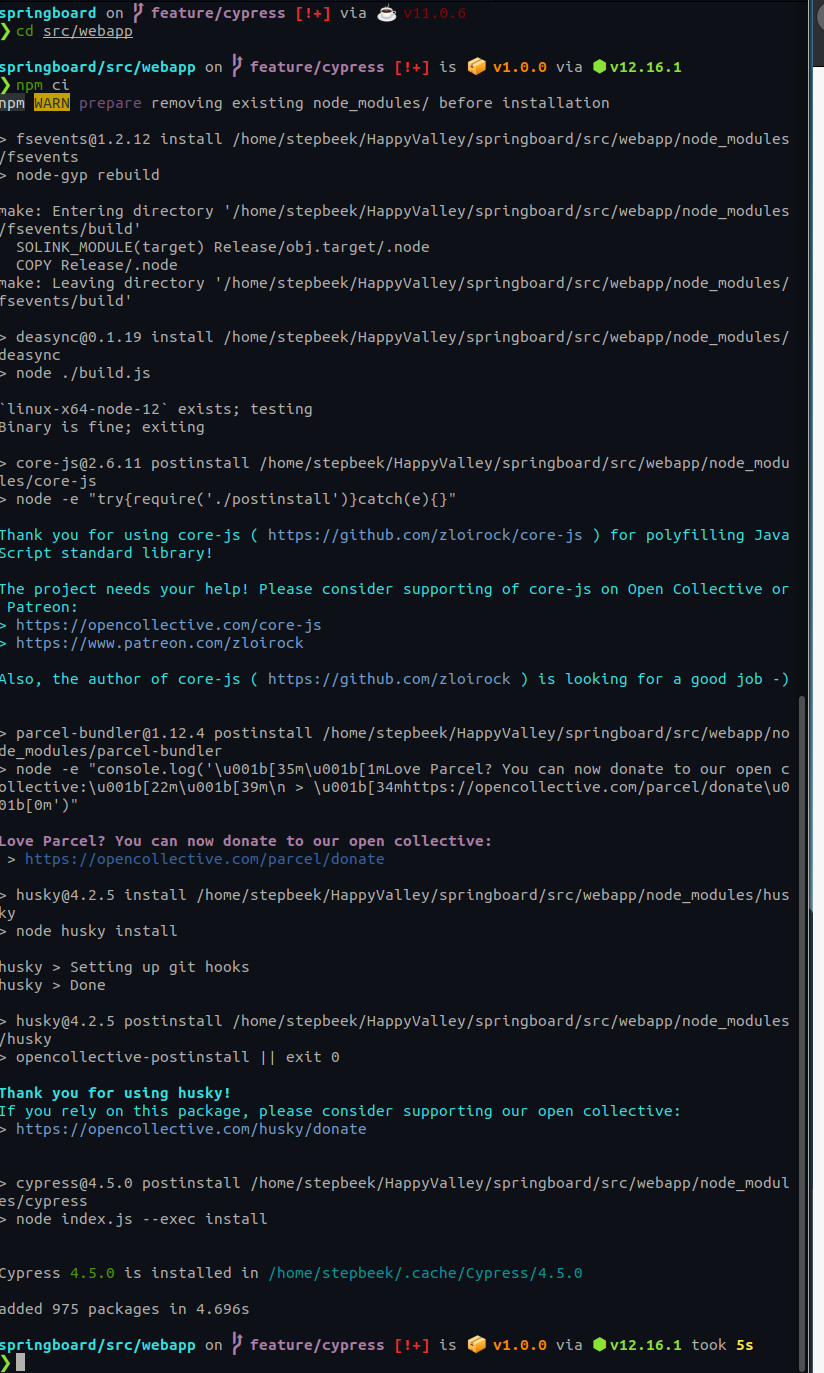

npm ci running in webapp dir

This installs the dependencies you need at the same version that we used when creating koil.

While npm install will work, it will also update a bunch of dependencies. In a perfect world, no breaking change would find its way into a minor version update. Alas, we don't live in a perfect world, and so we've found it better to use npm ci unless we're explicitly trying to update. This might be a little slow the first time (you'll also be pulling down the Cypress binaries) it runs, so feel free to stop here to have some punch and pie.

Introducing the Cypress test runner

First up, we'll presume you have a koil project ready to go and that you've got a working node environment. In the src/webapp directory, run the npx cypress open command, and you'll be greeted with the Cypress runner:

cypress runner open

We can see that we have a couple of test specs already here. If you click the button labelled Run all specs at the top right a new window will open, and you'll see some automated UI tests run:

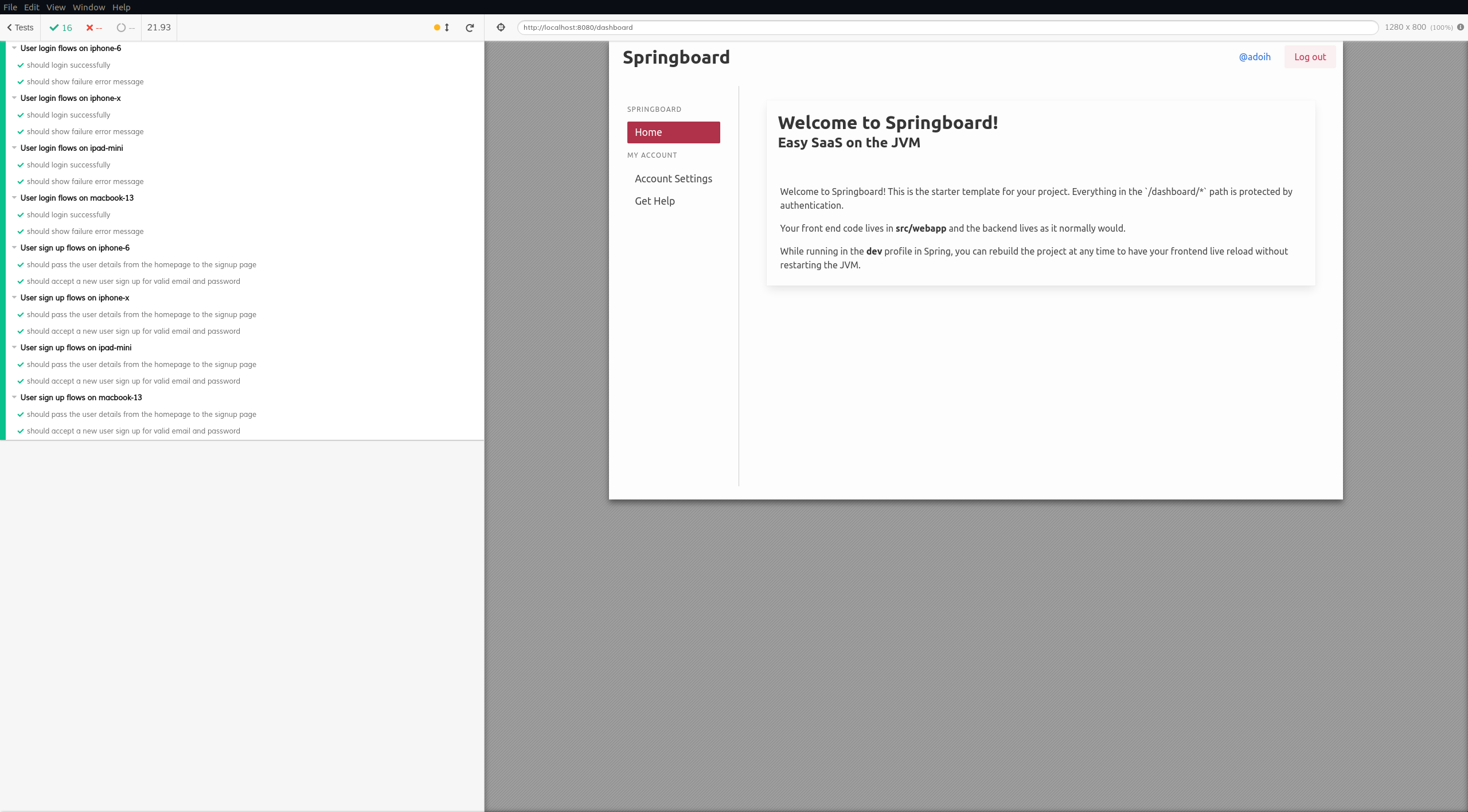

cypress initial run

These are some basic tests we've included to verify registration and login flows. This runner window is where we'll be spending most of our time as we write our tests. If we open src/webapp/cypress/integration/login.js we'll see some of the test cases that just ran:

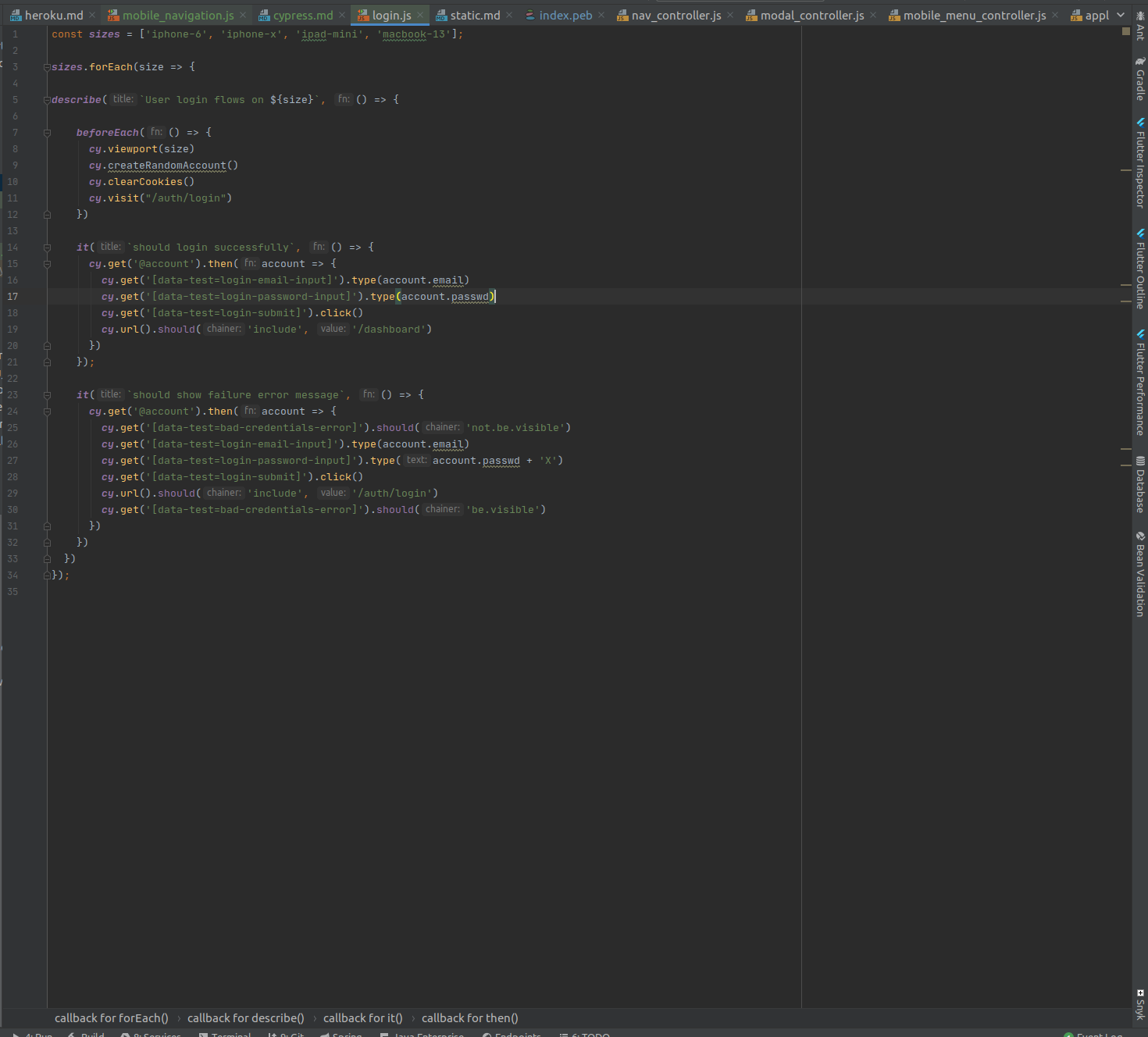

cypress login spec

There are a couple of things to pay attention to here:

  • we're using the Mocha test framework which Cypress comes with out of the box;
  • we're looping over an array of device names to generate tests for different device sizes;
  • we're using a custom command to create a new account in the before each (which you can find in `src/webapp/cypress/support/commands.js); and
  • our tests are written in plain ol' javascript.

You'll be using these techniques going forward to write a specification testing the mobile menu button on the index page.

Creating our test spec

In the src/webapp/cypress/integration directory, create a new file called mobile_navigation.js. In your favourite editor, add some boilerplate code:

describe(`User can open mobile menu`, () => {
    beforeEach(() => {
      cy.visit('/')
    })

    it(`should show mobile menu on button click`, () => {
        cy.pause()
    });
});

Now, let's go back to the Cypress Runner. You should see a new spec file is listed:

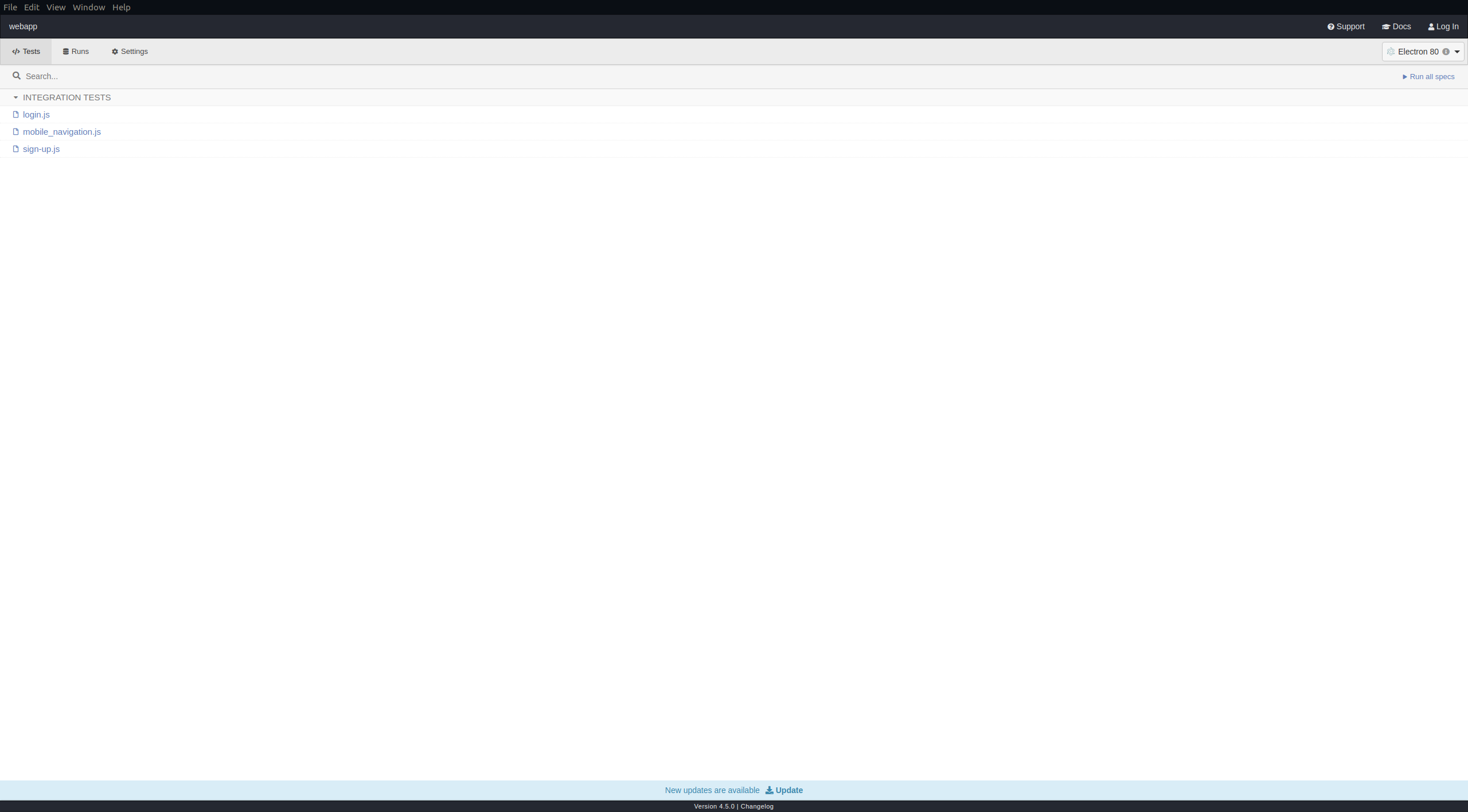

cypress runner with new spec file

Click on the file name mobile_navigation.js and you'll be taken to the running tests:

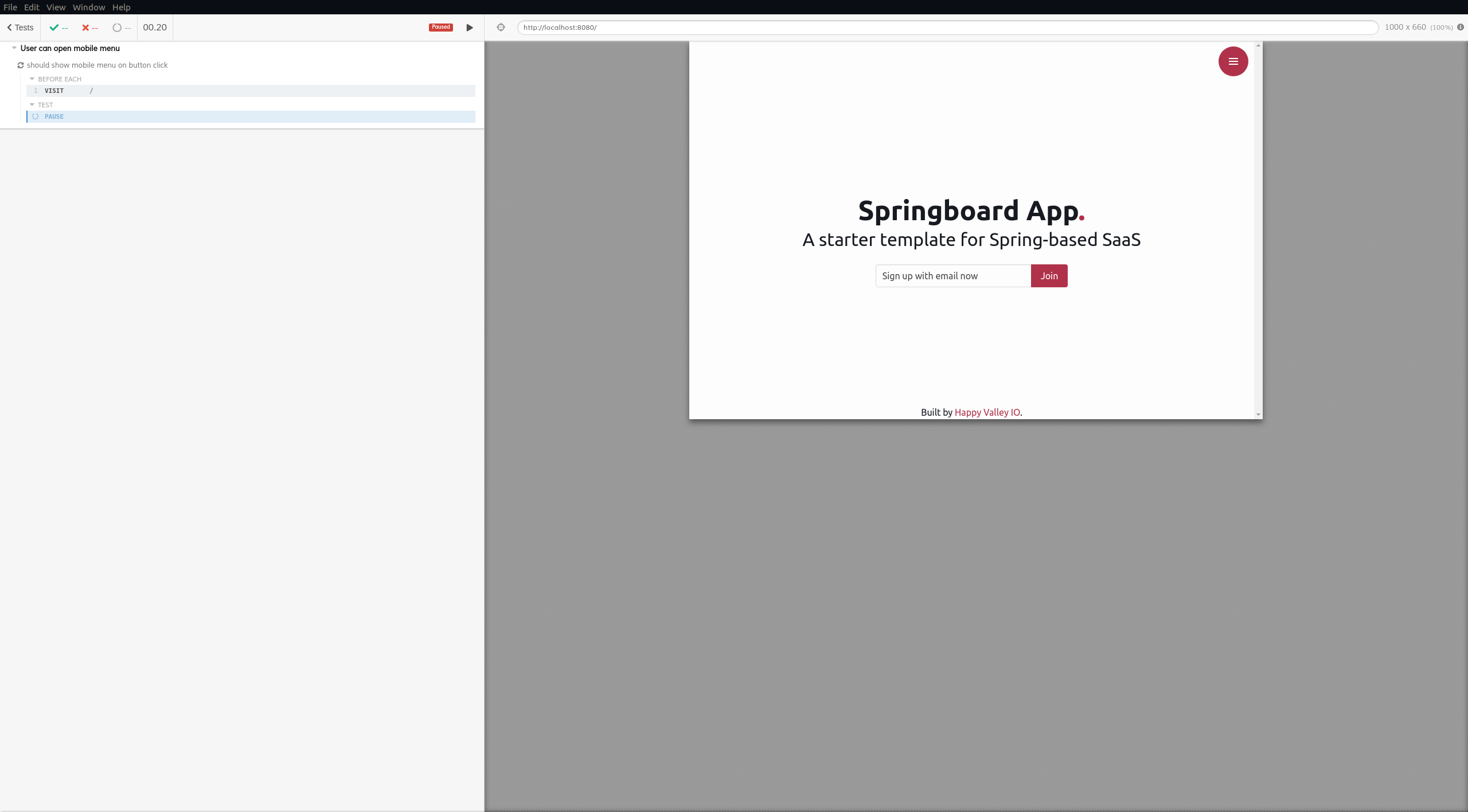

cypress running tests paused

Alright! This test is on the index page and is currently paused. This is because of the cy.pause() statement in our test case body (line 7 if you copy-pasted). You can click the play button at the top of the left-pane to resume. Adding some pause lines into tests when debugging is a great way to step through in increments.

More meaningful test case

Our test above doesn't really do anything, so let's fix that. First, consider that we're trying to test a bit of functionality on mobile, but the test is running on what looks like a laptop screen size. In the beforeEach of the spec file add a line to change viewport:

    beforeEach(() => {
        cy.visit('/')
        cy.viewport('iphone-6')
    })

Now when we run our test we'll see that Cypress is running on a screen with the same resolution as an iPhone 6:

cypress test with viewport changed

Pretty easy! The next thing we'd like to do is to assert that the menu isn't visible when we first arrive on the page. There are a bunch of ways to refer to an element in Cypress (by using normal CSS selectors), but we strongly recommend using data-test attributes as advised here.

Head on over to the index page template at src/webapp/src/templates/pages/index.peb. You'll see on line 21 that we already have a data-test attribute:

            <div class="navbar-menu is-hidden-tablet"
                  data-target="toggle.toggleable"
                  data-test="mobile-menu">
                <div class="menu">
                    <ul class="menu-list">
                        <li><a href="/auth/login">Login</a></li>
                        <li><a href="/auth/register/organization">Sign Up</a></li>
                    </ul>
                </div>
            </div>

That is, data-test="mobile-menu". To assert that it's not visible, let's add a line to our test case:

    it(`should show mobile menu on button click`, () => {
        cy.get('[data-test=mobile-menu]').should('not.be.visible')
        cy.pause()
    });

When you save this file, the open runner will re-run the test automatically. You'll see in the left pane that an assertion ran before pausing this time:

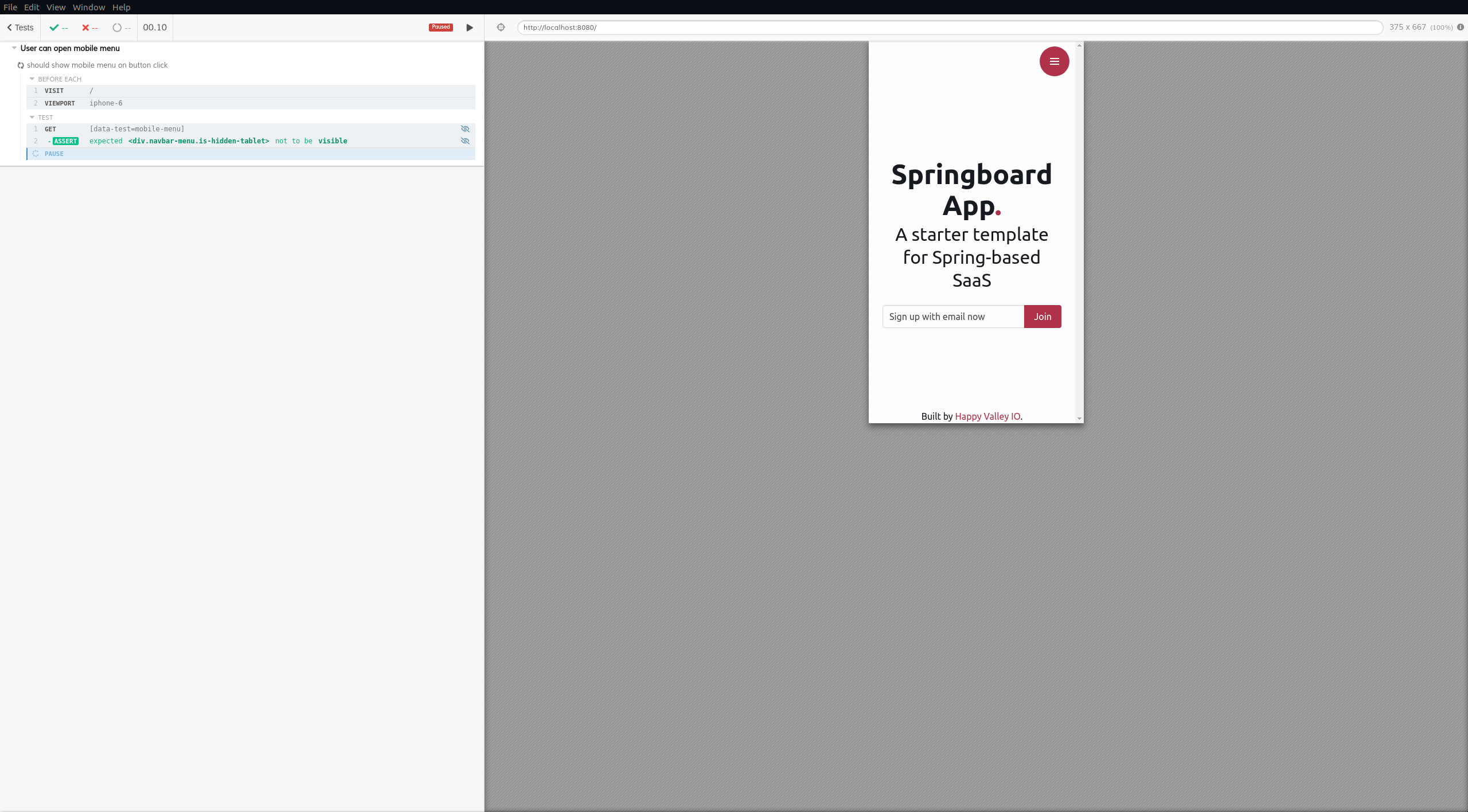

cypress with a single assertion about visibility

Neat! Now let's add in a couple more actions for our test to take. We want to click the menu button and assert that a menu is now visible.

If you return to src/webapp/src/templates/pages/index.peb, you'll see that our menu button already has a test attribute data-test="menu-button". Using this in our test, we get:

    it(`should show mobile menu on button click`, () => {
        cy.get('[data-test=mobile-menu]').should('not.exist')
        cy.get('[data-test=menu-button').click()
        cy.get('[data-test=mobile-menu]').should('be.visible')
    });

To clarify what's going on here: we're getting the menu-button element and clicking it. Then we're selecting the mobile-menu again and verifying that it's visible. To give this a BDD slant, the test would read GIVEN the mobile menu isn't visible WHEN the menu button is clicked THEN the mobile menu is visible.

And we're done! We can now say with confidence that the menu works on mobile.

Running on more devices

A favourite trick of ours is to run a cypress test for a variety of different viewport sizes. This saves a bunch of time in verifying that our website works across screen sizes without manual QA.

Add a device array to the top of the file:

const sizes = ['iphone-6', 'iphone-x', 'ipad-mini'];

We'll loop over this array, and add the existing test contents to the inner loop:

const sizes = ['iphone-6', 'iphone-x', 'ipad-mini'];

sizes.forEach(size => {
    describe(`User can open mobile menu on ${size}`, () => {
        beforeEach(() => {
            cy.visit('/')
            cy.viewport(size)
        })

        it(`should show mobile menu on button click`, () => {
            cy.get('[data-test=mobile-menu]').should('not.be.visible')
            cy.get('[data-test=menu-button').click()
            cy.get('[data-test=mobile-menu]').should('be.visible')
        });
    });
})

Note we've made two other changes here:

  • we've added the size parameter to the describe string of our spec; and
  • we've modified our beforeEach to call cy.viewport(size).

This results in:

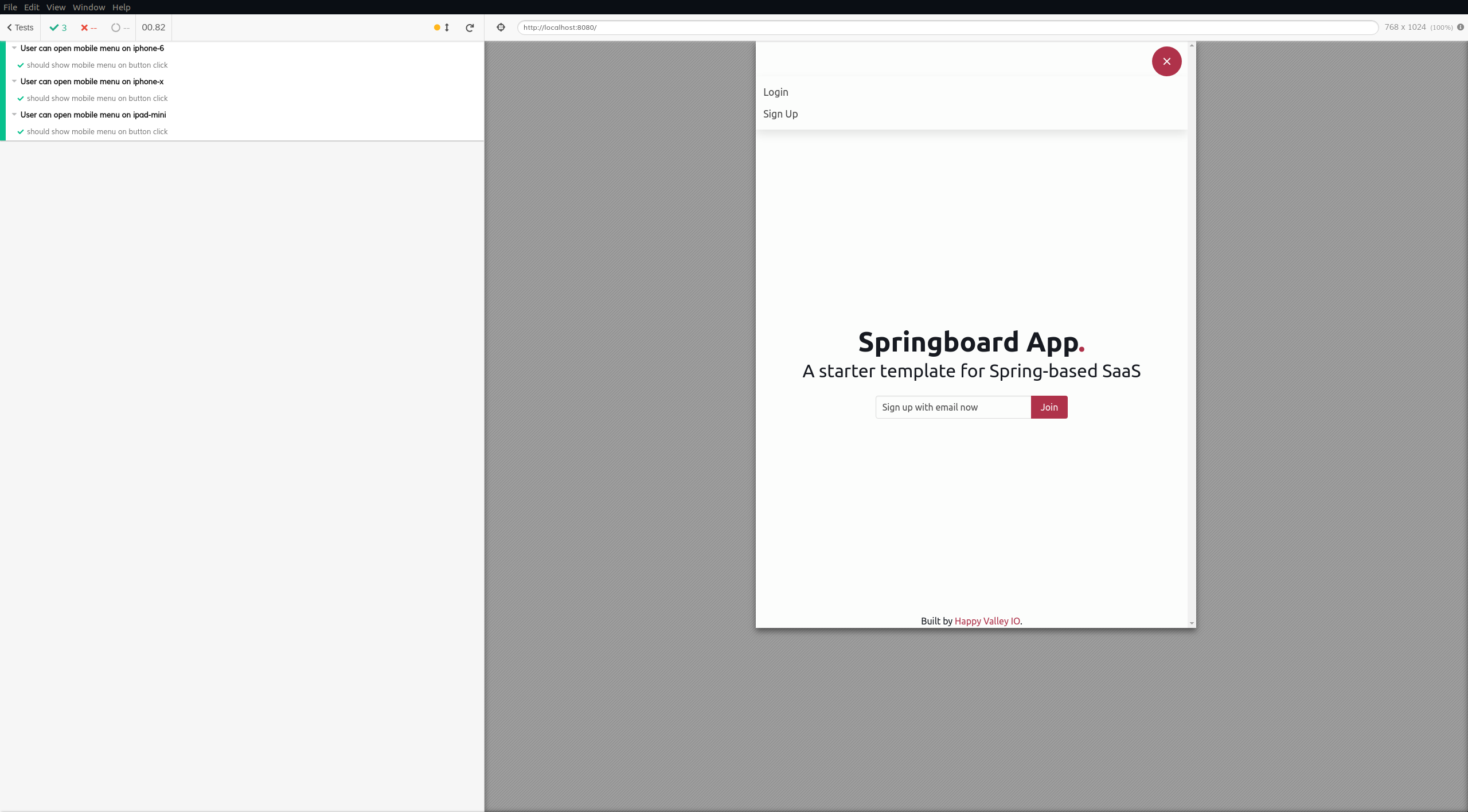

cypress running test multiple viewports

Sweet! Note that the test names now include the device preset name. To see more viewport aliases you can add, checkout this page.

Testing functionality that requires authentication

Frequently, we need to create a test account, log in as that user, and interact with some functionality only available to authenticated users. To help with this, we've created a custom cypress command cy.createRandomAccountAndLogin(). As an example of it in use, we''ll be adding another test case to the mobile_navigation.js file:

        it(`should show mobile menu on dashboard`, () => {
            cy.createRandomAccountAndLogin();

            cy.get('[data-test=mobile-menu]').should('not.exist')
            cy.get('[data-test=menu-button').click()
            cy.get('[data-test=mobile-menu]').should('be.visible')
        });

The navbar used on these pages has been given the same attributes that we used before: data-test="mobile-menu" and data-test="menu-button".

If you step through this test, you'll see that it makes some POST requests to create the account then navigates to /dashboard.

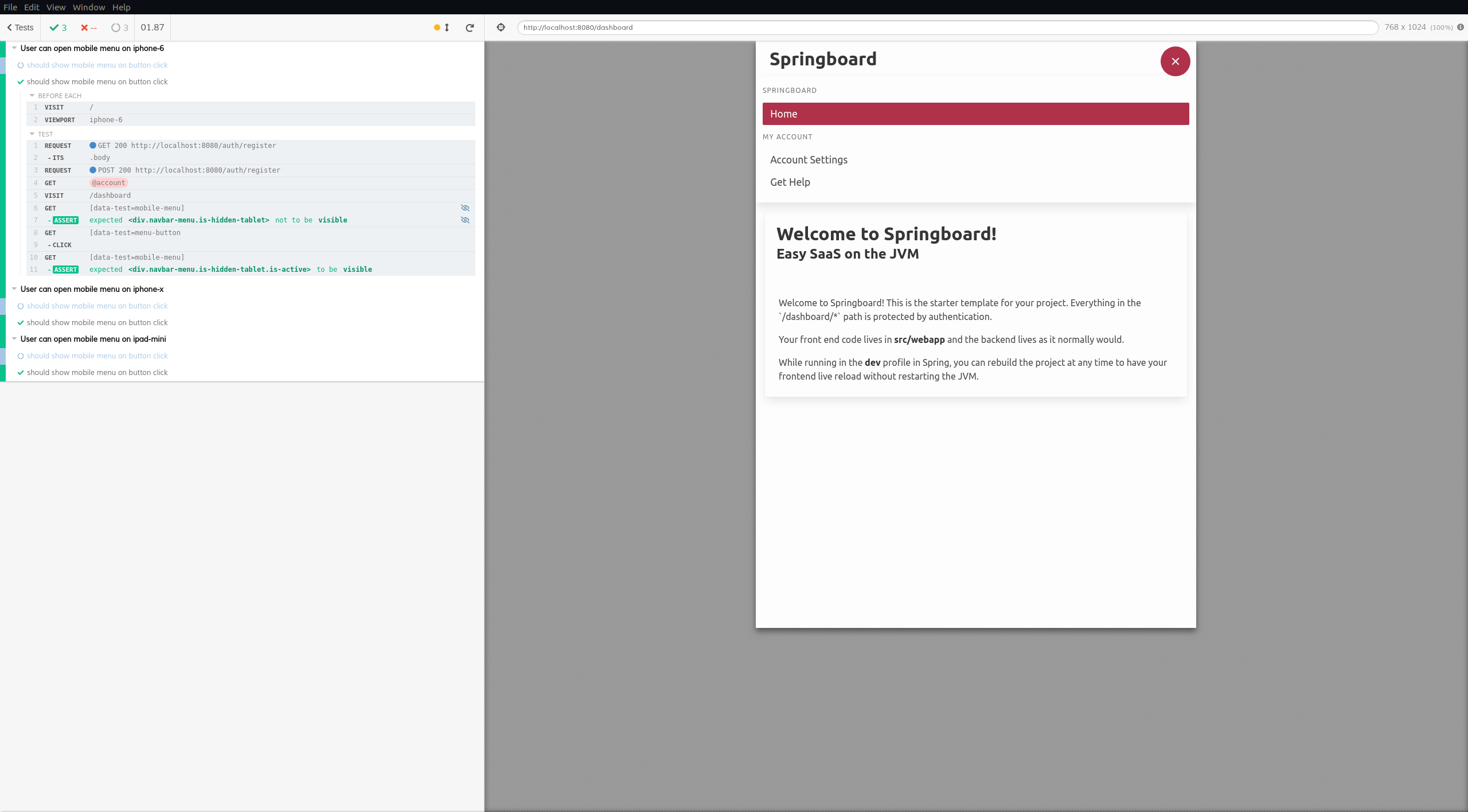

cypress authenticated test with expanded test

This is much preferred to working through these flows as a user would. We have tests that explicitly verify the authentication already, so any benefit to going through that process every time would be marginal. On the other hand, we'd be paying the cost with slower tests down and tighter coupling between the UI authentication flows and tests that don't really care what the auth UI looks like.

Running the test suite in JUnit

While the Cypress test runner is a great tool, we don't really want to have to open it every time we make a change. Instead, we probably just want these tests to run as a part of our normal test suite. Inspired by this blog post, we've written a JUnit test class that will run our entire suite.

Note: the author of the blog post above has also released a library to do a lot of the work for us. We're working on integrating this with koil soon.

You can find this test at src/test/kotlin/org/koil/CypressIntegrationTest.kt

This test will also be run as a part of a gradle build, making our CI runs super easy.

Caveat

A fairly natural next step here might be to write test setup code (e.g. create used account) in the JUnit test. We don't recommend this. Not only does it make running the test without JUnit very difficult, it also couples us quite tightly to this implementation as a Spring-based monolith. One of the primary benefits to Cypress testing in the way we advocate is that our tests are very loosely-coupled to the implementation of our application. We'd be loathe to lose that.

Conclusion

Well there we have it. A browser-based front-end test that runs automatically as a part of our build. As mentioned at the beginning, if you've not used Cypress before then we highly recommend digging in on their website. We think you'll be impressed.
